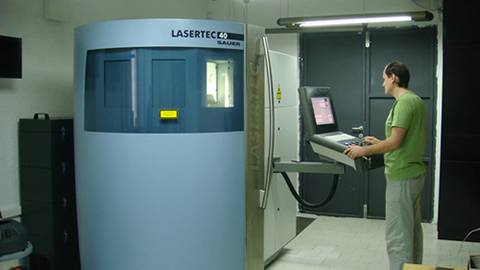

Micro laser processing machine (LASERTEC 40 – DMG)

Main characteristics

• A wide variety of workable materials - steel, aluminum, brass, carbide, ceramics, graphite, PCD, CBN, etc.
• Directing the laser beam using a precision scanner with dynamic mirrors, positioning probe with Z axis depth adjustment, CCD-camera with high resolution for accurate positioning of the work piece.
• Field of scanning 70 x 70 mm, automatic prepositioning for larger work pieces, a common working area 297 x 320 mm.
• Average power of the laser source 20 kW / 0, 0268 hp; wavelength 1,064 nm.
• Excellent accuracy of surfaces in depth, thanks to a regulation made during the process.
• Ability to process details without operator intervention.
• Intelligent and user friendly software management - LaserSoft 3D-control, with Windows ™ interface.
• New software features - a generator of 3D volumes, 3D-contour laser processing, 3D-engraving with a draft angle of the walls, 3D-grey scale processing.
• Laser source type Fiber laser, with a surface quality Ra = 0, 6 μm, improved dimensional accuracy and clarity of outline, a longer period of the source (requires changing only after 100,000 hours of work).

Fields of application

• Tools and molds:
  - Manufacture of molds and rapid form-building tools – micro switches, molds for  electronics and semiconductors, medical, injection molds, inserts, seals, graphite electrodes for electrical-to 10 mm.
• Production of engravings and die sets:
  - 3D-surfaces, different versions of the logo prints.
• Tools:
  - Cutting plates for tools and tools for complex relief forms made ​​of carbide, PCD and CBN materials.
• MEMS models:
  - Actuators and sensors.
• Order productions:
  - Flexible production of simple engravings and fine and precise molds in the same time on the same machine.
